Strong self-priming Chemically highly resistant materials rotor lobe pumps
Accuvon rotary lobe pumps
Accuvon rotary lobe pumps convey different fluids, whether with low or high viscosity, containing solids or pure, chemically aggressive or up to a temperature of 200°C. Due to the large selection of different materials, rotors and sealing systems, the pumps can be customized.
Our pumps are available in the series of 4 series with 16 different sizes and flow rates of 1 to 3200 m³/h – high performance with smallest footprint.
Working principle:
ACCUVON lobe pumps basically consist of two lobe rotors, which rotate synchronously driven by a pair of synchronous gears in the gearbox. The rotors are driven by the main shaft and sub-shaft to rotate in a synchronous reverse direction, which changes the pump capacity, builds up high vacuum and discharge pressure, thus an efficient pumping is formed. Gap is kept between the rotors and between the pump casing, no friction, long life, no damage, no physical and chemical reaction to the pumped products.
Technical Date:
| Product Name: | Petrochemical Lobe Pump |
| Material: | GG25 Pump housing,Tri-lobe rotors |
| Seal Material: | SIC/FKM |
| Max. Flow: | 60 m3/h |
| Max.pressure: | 18 bar |
| Speed | 300 RPM |
| Rotor Type: | Tri lobe rotors |
| Mechanical seal: | Mechanical seal |
| Motor power: | 3KW~22KW |
| Sealing option: | single mechanical seal/Double mechanical seal |
| Voltage: | 380V,50HZ |
| Motor: | XINGLING motor, WANNAN motor, others (Domestic Famous Brand) |
| connection: | Direct Flange |
| Available standard: | DIN, SMS, 3A, RJT, ISO/IDF |
| Operated: | Electric power |
| Application scope: | petrochemical industry, sewage treatment, railway vacuum discharge system, biogas energy, food waste, ship ocean, pulp and paper, food and drinks, light industry etc. |
Rotor And Casing Protection
Just the removable lobe tips of the patented rotor "Unique" have to be replaced in case of wear. Our Premium profile rotor has been especially designed for the biogas sector and offers long service life in case of pumped media containing fibers.The casing liners and casing protection plates protect the pump casing and can be replaced through the quick-release cover
in case of wear just as the single-acting mechanical seal. This way, the pump is like in a new condition within a few minutes.
Seal Selection
Our single- or double-acting mechanical seals are available in different versions and materials. The seals can be replaced very easily through the quick-release cover.
Unique Casing Protection
In order to prevent pump casing damage, e.g. due to abrasive or aggressive fluids, Accuvon pumps are equipped with casing protection. The unique casing liners and casing protection plates are available in different materials.
Advantages
• Steel rotors with screw profile for low pulsation
• Pump is permanently technically tight
• Pressure-resistant
• Almost pulsation-free pumping
• Pumping of highly viscous media
• Resistant to solids
• High efficiency with pressures of up to 25 bar
• Pump speed can be adapted to the viscosity of the medium
• Short-term dry-run capability
• Self-priming
• Flexible flow rate
• Short-term dry-run capability
• Pumping of highly viscous media
• Pump made of stainless steel
• Quick emptying of tank
• Chemically highly resistant materials
• Small footprint
• Reversible
• Variable speeds
• Changing the rotors in a few minutes

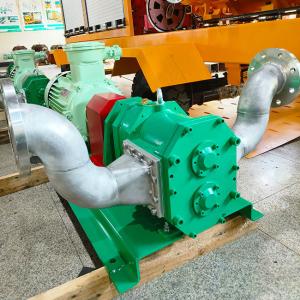

Testing Photo
